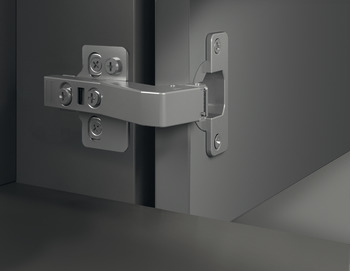

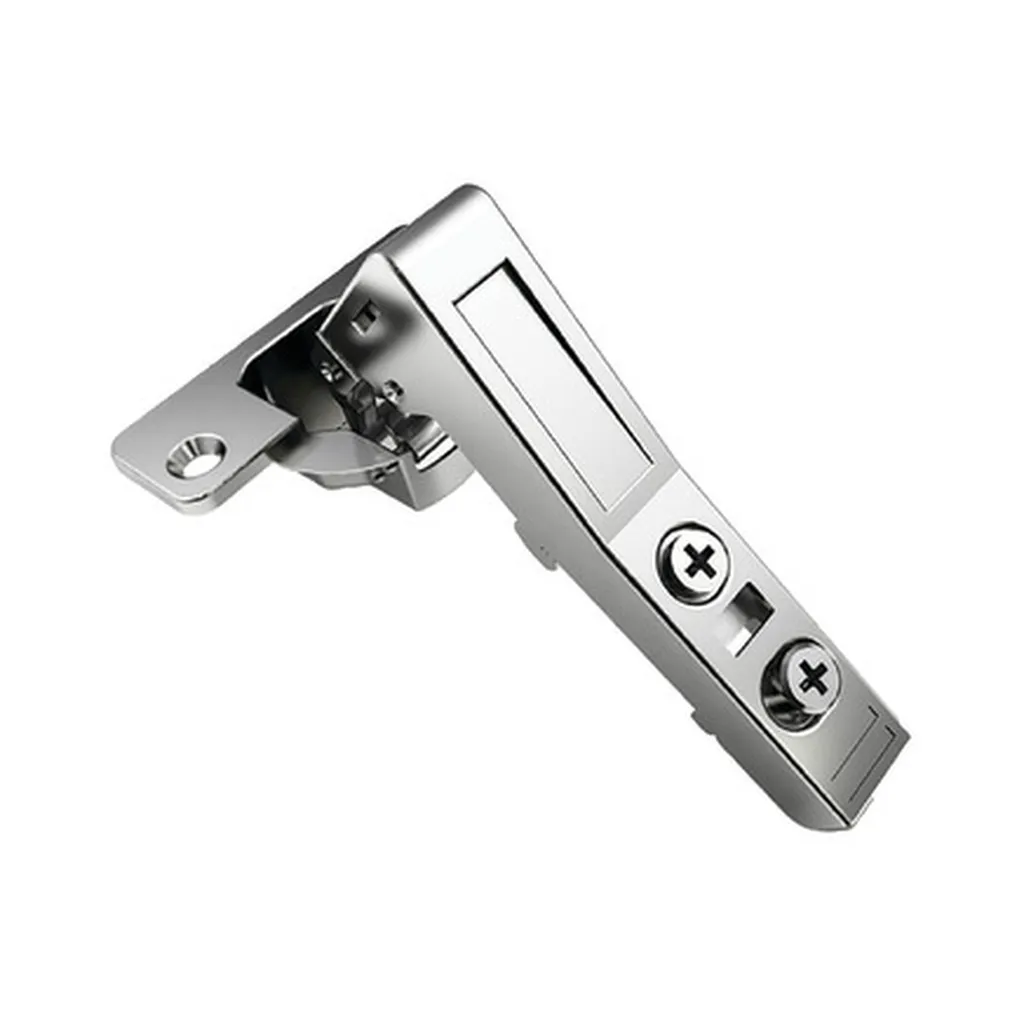

Concealed hinge, Häfele Metalla 310 A/SM 90°, soft45
Concealed hinge, Häfele Metalla 310 A/SM 90°, soft45 - Image 2
Concealed hinge, Häfele Metalla 310 A/SM 90°, soft45 - Image 3

Concealed hinge, Häfele Metalla 310 A/SM 90°, soft45

SKU: HH8366316434

$3.56 Exc GST

Compare
Add to wishlist
18 People watching this product now!

Payment Methods:

All prices and specifications may change without prior notice. We cannot control price increases from our suppliers and reserve the right to adjust or correct prices listed online. The final price charged will be the price applicable at the time of shipping. If the price exceeds the amount shown online, we will notify you before proceeding with the charge.

Description

with or without integrated soft closing mechanism



Area of application

for blind corner applications

Crank type

Cranked

For door material

Wood

Product Material

Steel

Colour/finish

nickel plated

Opening angle

90°

Cup drilling depth

12.50 mm

Cup drilling Ø

35.00 mm

Cup fixing

Knock-in

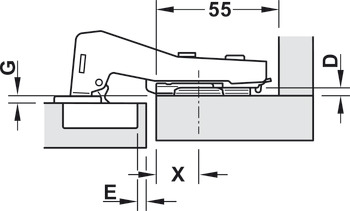

Drilling pattern

45/9.5

Adjustment facility

3-dimensional (with appropriate mounting plate)

Installation

Door on cabinet with slide-on system A or quick fixing system SM

Installation note

Standard screw-on position of the mounting plate is 37 mm from the blind corner edge.
