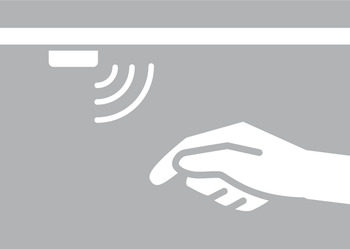

Use DIP switch to toggle from touch-free dimmer to door sensor
Soft on/off
Switching contact
touchless
Control output ports
1 x socket, Loox switch
Colour/finish
White/Gray/Black
Switching function

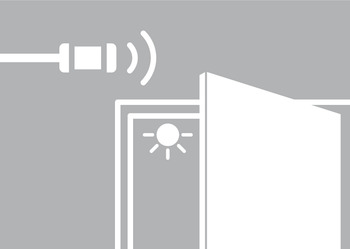

On/off soft, touchless, Door open = light on, door closed = light off, Dimming
Memory function
Yes (also in currentless condition)
Drill hole Ø
12.00 mm
Length
44.50 mm
Sensor range
0 – 75 mm
Material
Plastic

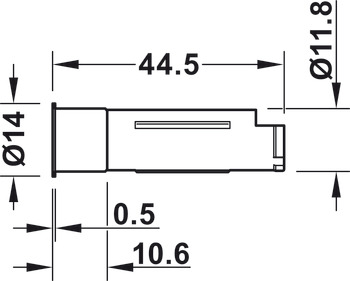

Dim. (Ø x L)
11.8 x 44.5 mm
Power Consumption
0.30 W
Degree of protection
IP20

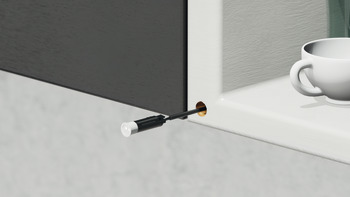

Installation
For mounting in drilled hole, or for plug fitting into housing
Installation note
coloured cover sleeve suitable for drill hole in furniture and housing
Order reference
Please order lead with snap-in connector for modular switches separately. Length 2Â m: Cat. No. 833.89.142

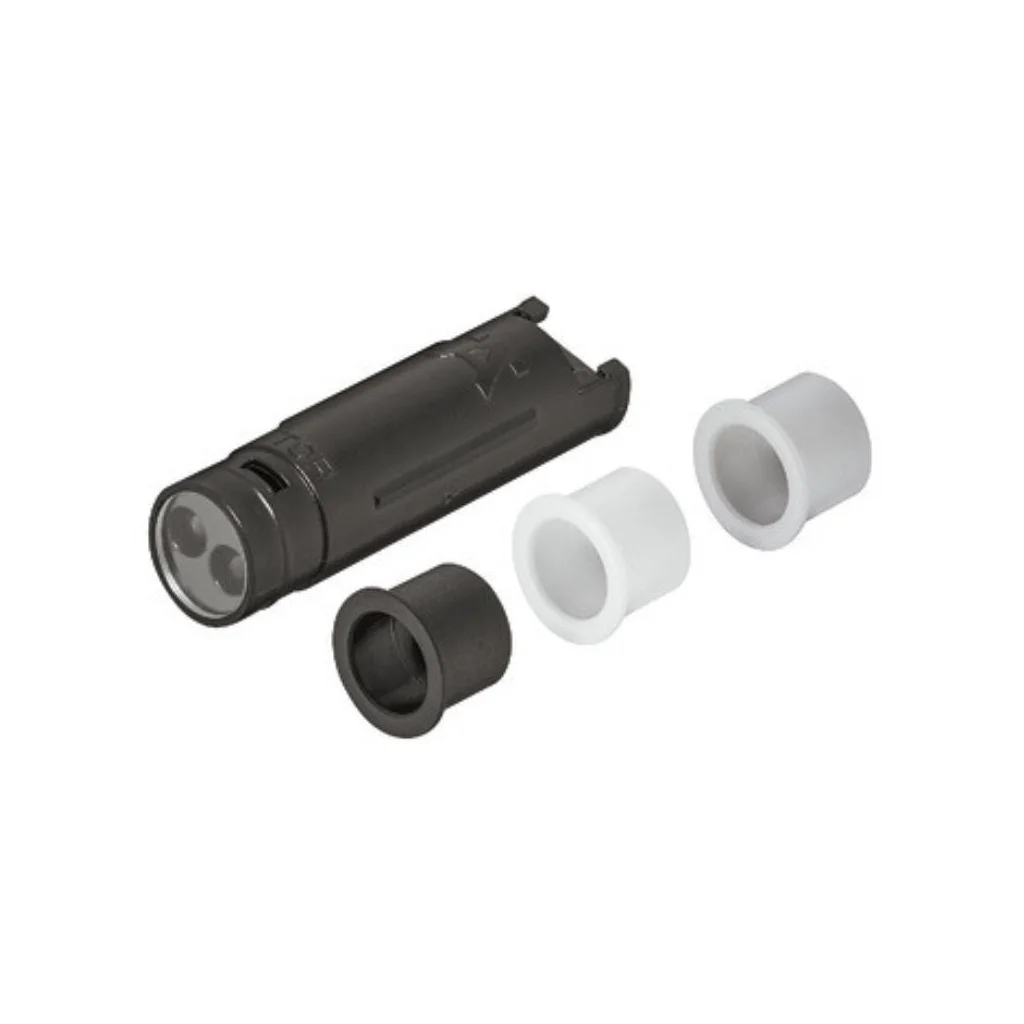

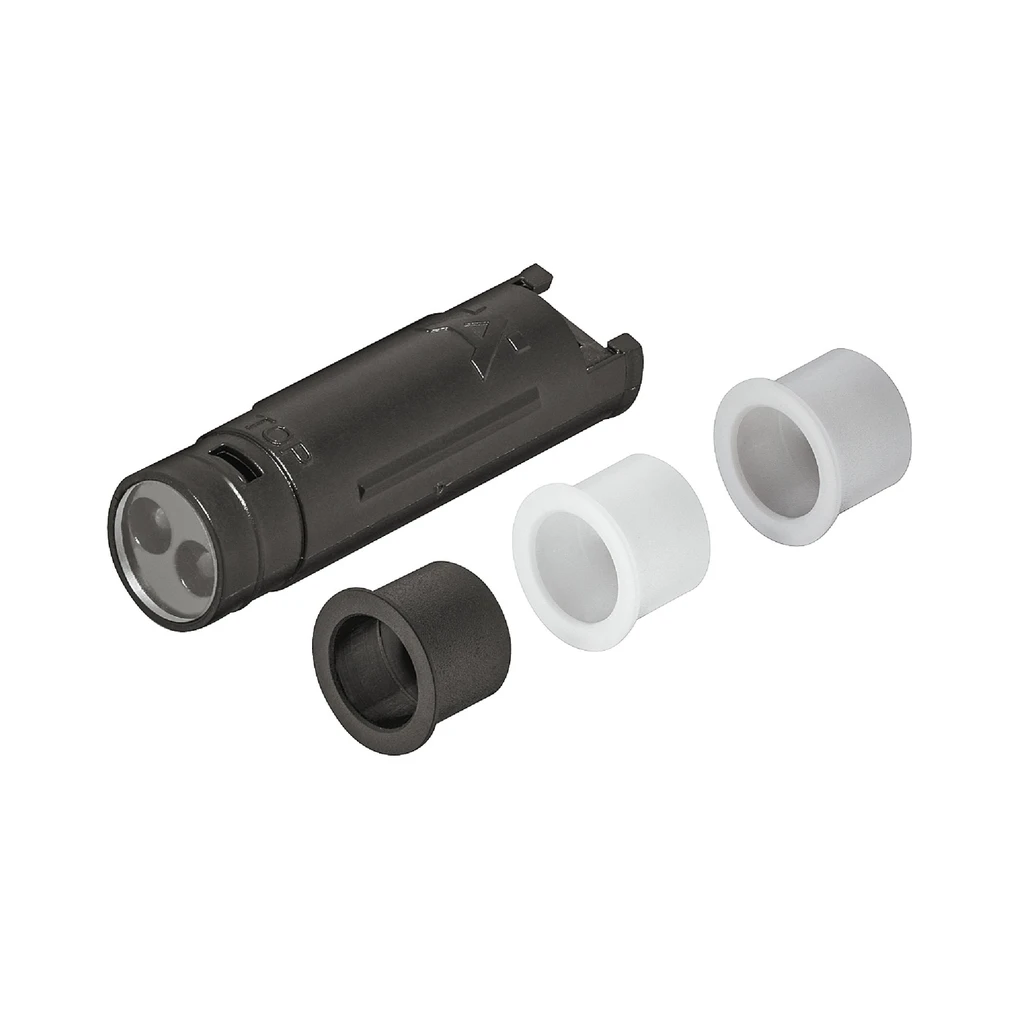

Supplied with
1 sensor switch, adjustable
3 cover sleeves (white, grey, black)
The specification of the sensor range applies to white surfaces. With black surfaces, the range of the infrared sensor is halved, matt black surfaces can reduce the value further. Trial mounting is recommended. A white reflection surface can be glued to the inside of sliding doors.
