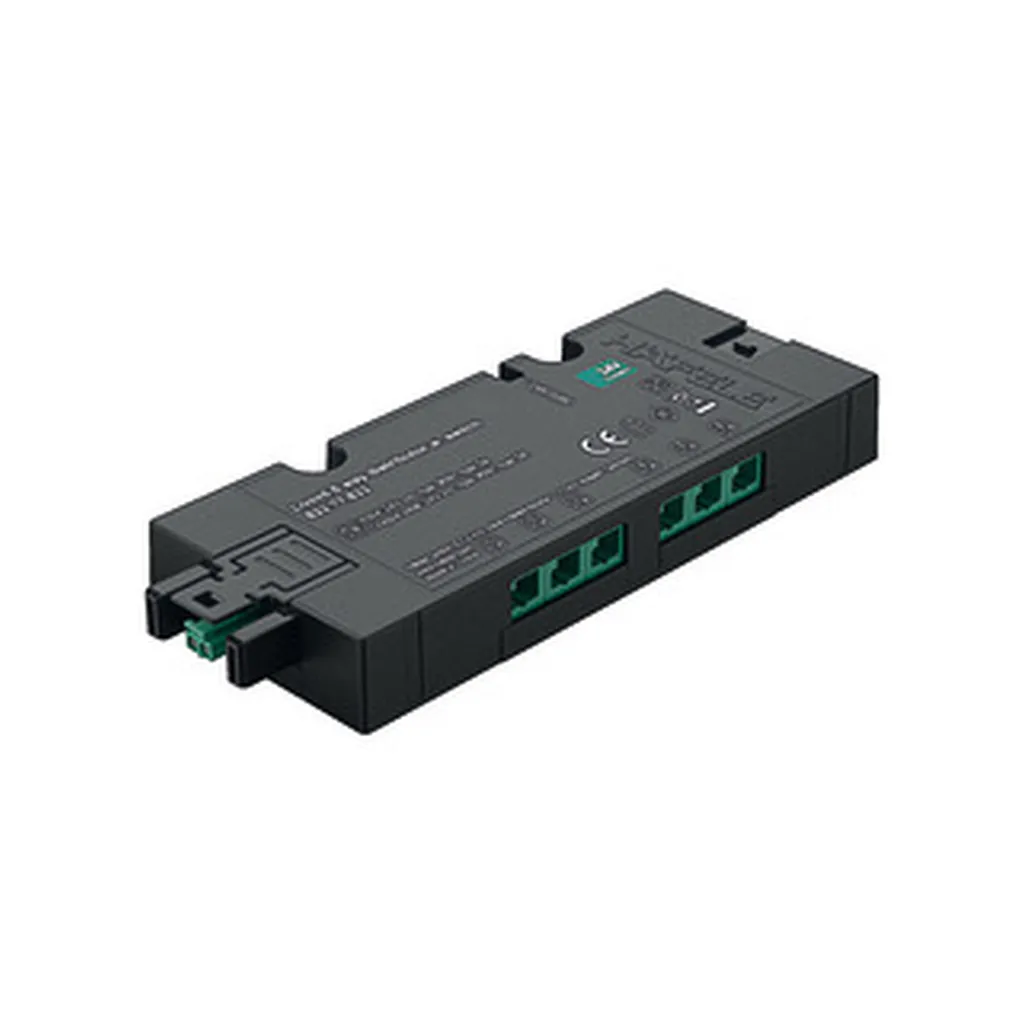

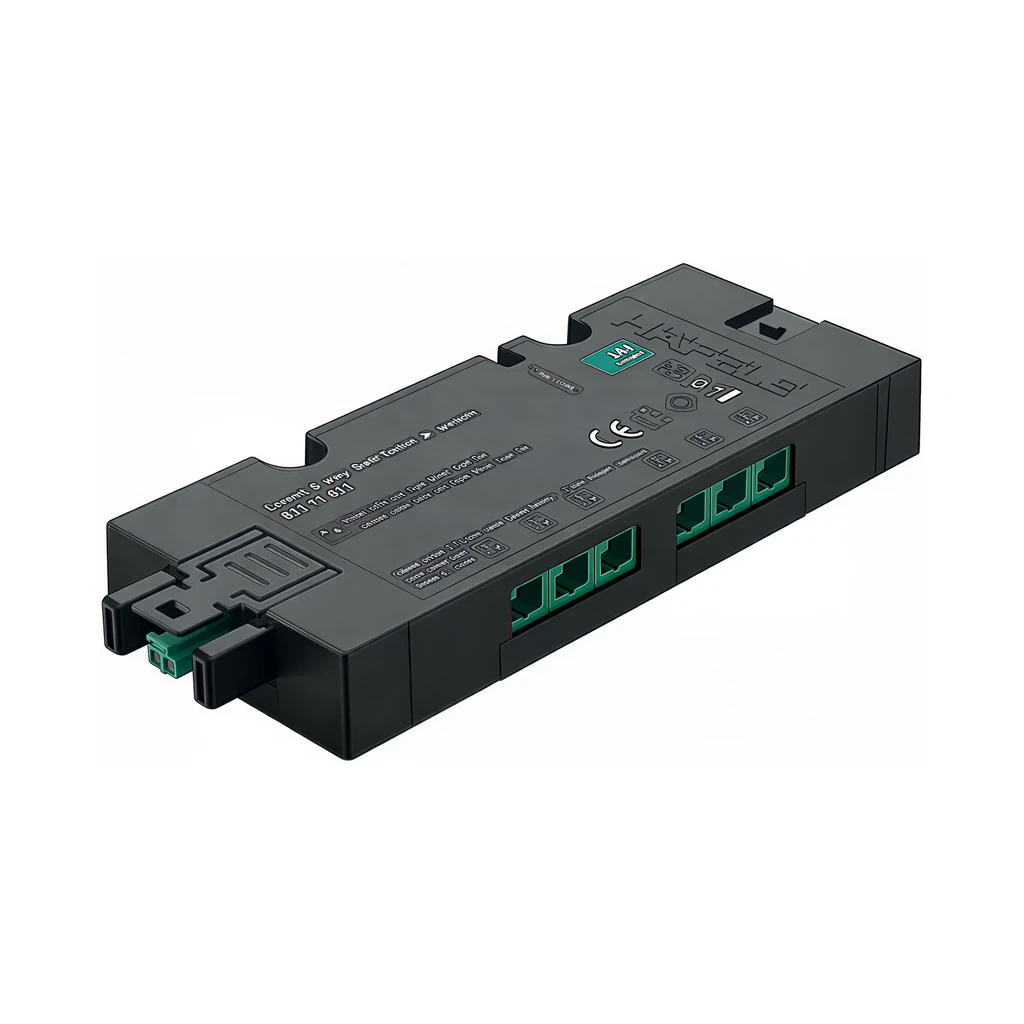

6-way distributor, Häfele Loox5 24 V box to box with switching function 2-pin (monochrome) for 1 switch, max. connected wattage 120 W
6-way distributor, Häfele Loox5 24 V box to box with switching function 2-pin (monochrome) for 1 switch, max. connected wattage 120 W - Image 2

6-way distributor, Häfele Loox5 24 V box to box with switching function 2-pin (monochrome) for 1 switch, max. connected wattage 120 W

SKU: HH3716516532

$15.00 Exc GST

Compare
Add to wishlist
12 People watching this product now!

Payment Methods:

All prices and specifications may change without prior notice. We cannot control price increases from our suppliers and reserve the right to adjust or correct prices listed online. The final price charged will be the price applicable at the time of shipping. If the price exceeds the amount shown online, we will notify you before proceeding with the charge.

Description

  • Plug connection box to box
    With switching function for 6 output ports
    The connection of the distributors with the driver can be done via a box to box plug-in connection or via an extension lead. Any number of distributors can be connected to the driver.

Low voltage plug

Loox5 2-pin 24 V box to box

Input ports

1 x plug, Loox5 2-pin 24 V box to box

Outputs

1 x socket, Loox5 2-pin 24 V box to box

Connected output ports

6 x sockets, Loox5 2-pin 24 V

Control input ports

1 x socket, Loox switch

Power rating

120.00 W

Voltage

24.00 V

Colour system

monochrome

Suitable for

For professional LED control, for monochrome LED lights, For monochrome lights

Version

Box to box with switching function

Material

Plastic

Colour/finish

Black

Dim. (L x W x H)

120 x 50 x 16 mm

Switching function

With switching function

Standby power consumption

0.50 W

Supplied with

1 Distributor incl. fixing material (adhesive tape and screws)

Note max. output power of used driver!
Wattage capacity within the scope of UL 1310 (e.g. USA, Canada): 90 W
