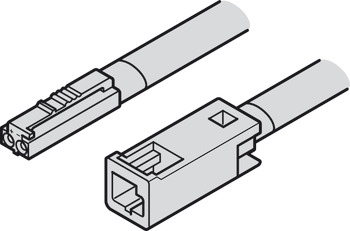

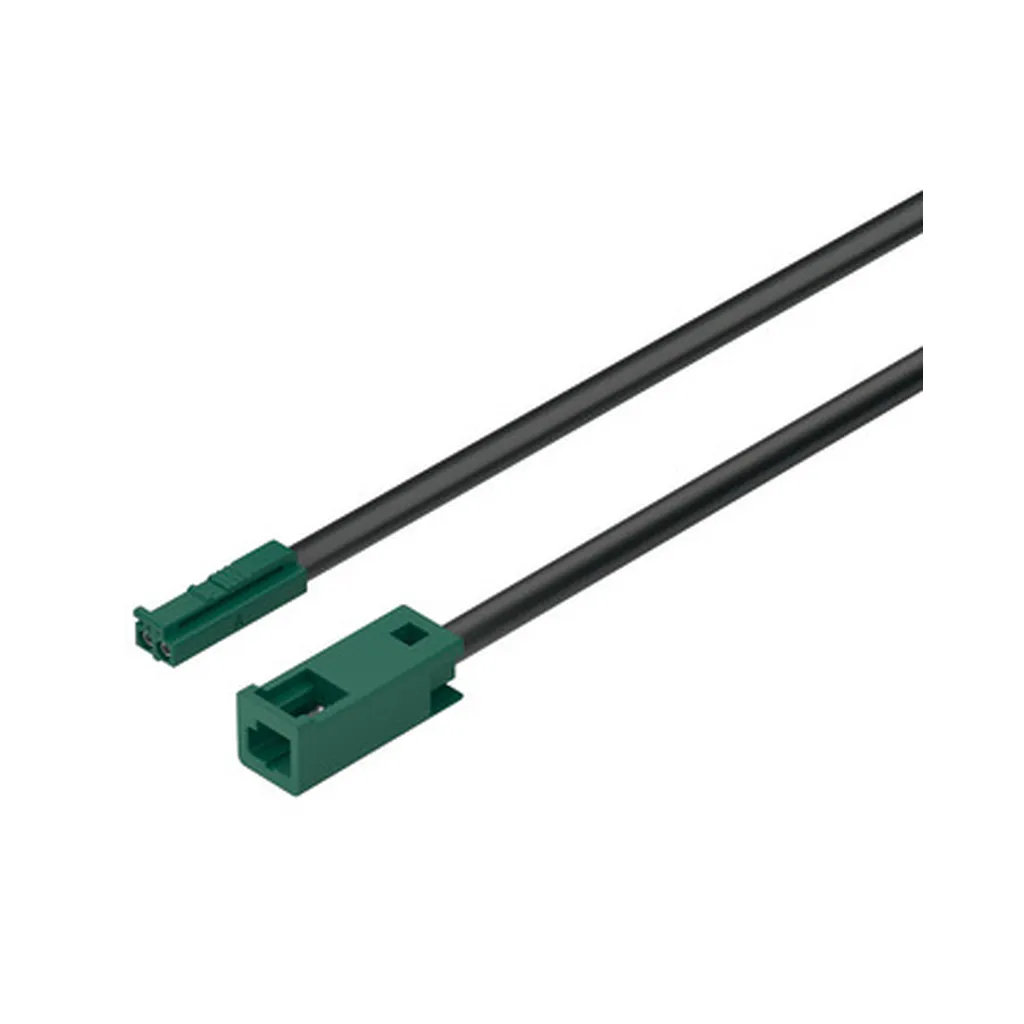

Extension lead, For Häfele Loox5 24 V 2-Pin (Monochrome Or Multi-White 2-Wire Technology) 5 A, 18 AWG, 2000 mm
Extension lead, For Häfele Loox5 24 V 2-Pin (Monochrome Or Multi-White 2-Wire Technology) 5 A, 18 AWG, 2000 mm - Image 2
Extension lead, For Häfele Loox5 24 V 2-Pin (Monochrome Or Multi-White 2-Wire Technology) 5 A, 18 AWG, 2000 mm - Image 3
Extension lead, For Häfele Loox5 24 V 2-Pin (Monochrome Or Multi-White 2-Wire Technology) 5 A, 18 AWG, 2000 mm - Image 4

Extension lead, For Häfele Loox5 24 V 2-Pin (Monochrome Or Multi-White 2-Wire Technology) 5 A, 18 AWG, 2000 mm

SKU: HH3325116536

$6.80 Exc GST

Compare
Add to wishlist
20 People watching this product now!

Payment Methods:

All prices and specifications may change without prior notice. We cannot control price increases from our suppliers and reserve the right to adjust or correct prices listed online. The final price charged will be the price applicable at the time of shipping. If the price exceeds the amount shown online, we will notify you before proceeding with the charge.

Description

Article details

Colour system

monochrome or MW 2-wire-Technology

Input ports

1 x plug, Loox5 2-pin 24 V

Outputs

1 x socket, Loox5 2-pin 24 V

Nominal voltage

24.00 V

Current carrying capacity

5.00 A

Wire cross section AWG

18.00

Area of application

For Loox5 2-pin lights (monochrome or multi-white 2-wire technology), charging stations, audio systems and distributors

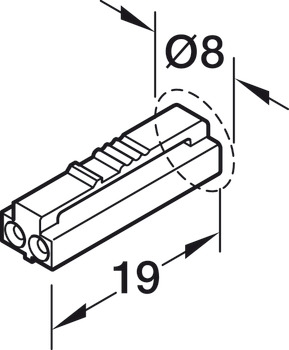

Plug drill hole Ø

8.00 mm

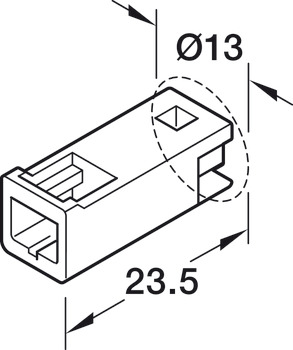

Socket drill hole Ø

13.00 mm

Supplied with

1 extension lead plug/socket

Additional information attributes

Lead length from Loox5 driver to device max. 10 m.
Long cable lengths in combination with large loads (strip light lengths) can result in voltage drop in the cable. These lead to visible loss of brightness in the lights. The illuminance listed with the lights has been determined with the rated output voltage of the driver(24 V).
